Stable Heat Sealing Testing Equipment With Gradient Station PID Control Accurate Lab Heat Sealer For Composite Film
Our Heat Sealing Testing Equipment, specifically the GHS-01 Gradient Heat Seal Tester, is a state-of-the-art device designed to evaluate the heat-sealing properties of packaging materials such as films, laminates, and various flexible barriers. This advanced Heat Sealing Testing Equipment is used in industries like food, pharmaceuticals, electronics, and packaging to ensure that materials can withstand production environments and maintain the integrity of their seals.
Proper heat sealing ensures product quality and extends the shelf life of products, making Heat Sealing Testing Equipment critical in modern packaging processes. Our GHS-01 tester stands out due to its high precision, stability, and the ability to test multiple temperature gradients simultaneously, offering unparalleled efficiency and accuracy.
Applications of GHS-01 Heat Sealing Testing Equipment
The GHS-01 Gradient Heat Seal Tester is ideal for testing the sealing properties of various materials under different conditions. This Heat Sealing Testing Equipment can be used to simulate real-world production environments where packaging materials must endure heat and pressure to create strong, durable seals. Its application spans a wide range of industries:
- Food Packaging: Ensuring that heat-sealed food packaging is airtight to prevent contamination and extend shelf life.
- Pharmaceuticals: Verifying that packaging materials used for medicines and medical supplies provide an impermeable barrier to maintain sterility.
- Electronics: Testing that packaging for electronic components is securely sealed to protect against moisture, dust, and other environmental factors.
- Cosmetics and Personal Care Products: Ensuring that packaging materials retain product freshness and protect from leaks.
Key Features of Heat Sealing Testing Equipment – GHS-01 Gradient Heat Seal Tester
The GHS-01 Gradient Heat Seal Tester stands out due to its exceptional design, allowing manufacturers to determine optimal sealing parameters for various materials. It integrates several key features that make it the perfect choice for testing in a laboratory or production environment.
-
Multi-Station Heat Sealing with Temperature Gradient: This Heat Sealing Testing Equipment allows multiple tests to be run at different temperatures simultaneously. The GHS-01 offers up to five gradient temperature stations, which increases testing efficiency by reducing the downtime between tests.
-
Precise Control of Heat, Pressure, and Time: Equipped with an advanced PID (Proportional Integral Derivative) temperature controller, the GHS-01 provides accurate and stable temperature control, allowing for precise adjustments. The tester also features an accurate timer and a proximity sensor to ensure that the seal is applied consistently during testing.
-
Customizable Seal Jaws: The device includes customizable seal jaws, offering flexibility in the dimensions, shapes, and patterns of the sealing surfaces. This adaptability makes the GHS-01 the preferred choice for manufacturers working with unique packaging designs.
-
High Stability and Accuracy: The upper and lower jaws are made of aluminum and are independently heated, which minimizes heat loss and ensures uniform heat distribution across the sealing surface. With a sealing temperature range from ambient to 250°C, and a deviation of ±0.2°C, the GHS-01 offers precision like no other.
-
User-Friendly and Safe Operation: The GHS-01 includes several user protection features, such as an anti-scald front cover and manual or foot switches for easy operation. This design ensures both ease of use and safety in a laboratory setting.
Industry Standards Compliance for Heat Sealing Testing Equipment
The GHS-01 Gradient Heat Seal Tester complies with several international standards that are crucial for quality control in heat sealing applications. One of the most important standards it adheres to is ASTM F2029-16(2021), which provides practices for making laboratory heat seals and determining the heat-sealability of flexible barrier materials by measuring seal strength.
Technical Specifications of GHS-01 Heat Sealing Testing Equipment
| Sealing Temp. | Ambient~250℃ |
| Temp. Gradient | ≤20℃ |
| Deviation | ±0.2℃ |
| Sealing Time | 0.1S~9999S |
| Sealing Pressure | 0.15~0.7 MPa |
| Seal Jaws(mm) | U:40*10 5PCS/L:330 1PCS |
| Gas Input | 0.7 MPa with Ф6 mm Pipe |
| Power | AC 220V 50Hz |
Heat Sealing Test Process
The GHS-01 tester's operation is straightforward yet highly effective. A sample is placed between two parallel heated sealing jaws. When the required temperature is reached, the upper seal jaw, powered by a gas cylinder, applies a precise pressure on the material for the set duration. Once the sealing time is up, the upper seal jaw retracts, and the test is complete. The GHS-01 ensures consistent results across various packaging materials by precisely controlling all parameters.
Heat Sealing Evaluation and Quality Assurance
Once the heat sealing process is complete, the integrity of the seal can be evaluated using different methods, depending on the industry requirements. Some common methods include:
- Air Leak Testing: A method to test if any leaks are present in the sealed area.
- Dye Penetration: A test where dye is introduced to see if it seeps through the seal, indicating a weak spot.
- Visual Inspection: A simple method to visually inspect the seal for continuity and uniformity.
- Microbial Penetration: Used primarily in pharmaceutical applications to ensure that microorganisms cannot pass through the sealed packaging.
Each of these methods provides valuable insights into the strength and continuity of the heat seal, ensuring the packaging material meets the required standards for product safety and performance.
Advantages of GHS-01 Heat Sealing Testing Equipment
- Time-Saving: With the ability to perform multi-station testing at different temperatures simultaneously, this Heat Sealing Testing Equipment significantly reduces testing times, allowing for faster product development cycles.
- Enhanced Accuracy: The PID control system ensures precision in temperature management, eliminating variations in heat application that can lead to inconsistent seal strength.
- Versatility: The customizable jaw design means the GHS-01 can be used for a wide range of packaging materials and configurations, making it a flexible tool for manufacturers across industries.
- Compliance with Global Standards: By adhering to ASTM F2029-16(2021), the GHS-01 ensures that the seals it tests are compliant with international standards, which is critical for businesses aiming to sell products globally.
Conclusion
The GHS-01 Gradient Heat Seal Tester is a highly advanced and precise Heat Sealing Testing Equipment designed for manufacturers who need to ensure their packaging materials meet the highest standards of quality and durability. With its multi-station testing capabilities, accurate PID temperature control, customizable seal jaws, and compliance with international standards, the GHS-01 is the ideal solution for testing heat-sealing properties in various industries.
|
|

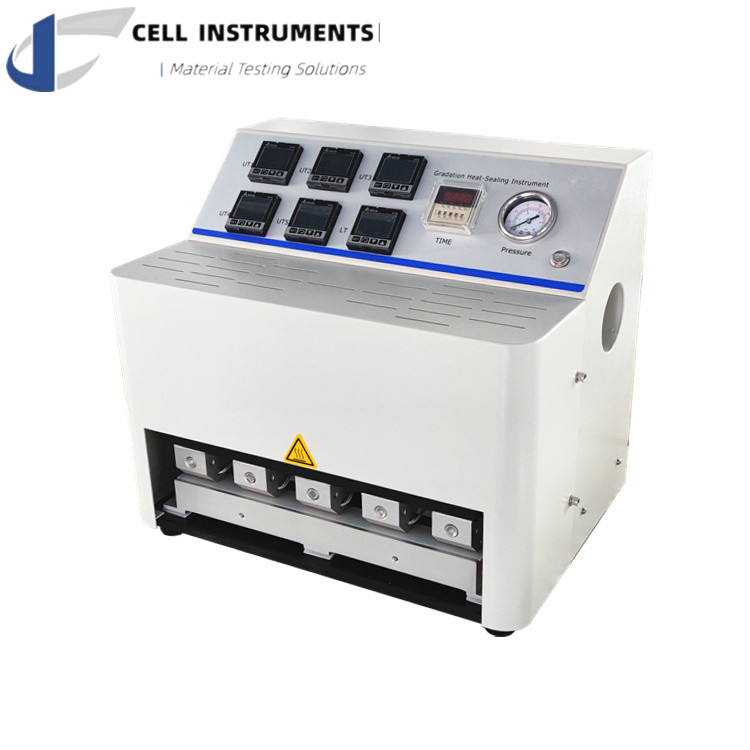

Stable Heat Sealing Testing Equipment With Gradient Station PID Control Accurate Lab Heat Sealer For Composite Film Images
|
