POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE PACKAGING HEAT SEALER LABORATORY HEAT SEALER

Name: POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE PACKAGING HEAT SEALER LABORATORY HEAT SEALER
Brand: Cell Instruments
Price: 1 USD

China POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE PACKAGING HEAT SEALER LABORATORY HEAT SEALER wholesale

Brand Name : Cell Instruments

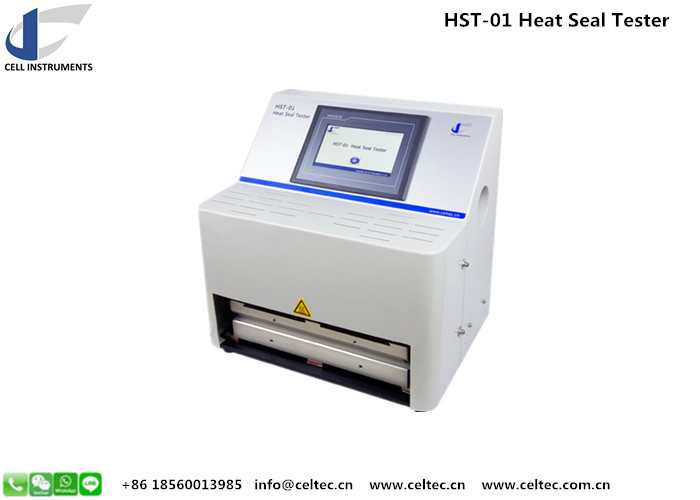

Model Number : HST-01

Place of Origin : China

MOQ : 1 set

Payment Terms : TT, LC

Supply Ability : At Stock

Delivery Time : 3~5 days

Packaging Details : Plywood Carton

Material : Plastic

Power : 220V

standards : ASTM F2029

Control : PLC and HMI touch screen

Certification : CE

Price : Get An Offer

Contact Now

POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE is used for the precise measurement of sealing temperature, time and pressure.

Test Standards

ASTM F2029, QB/T 2358 and YBB 00122003.

Technical features

1. 7 inch TFT touching screen makes parameter setting and operation easy and convenient for Heat Seal Tester.

2. PLC for precise dwell time and sealing pressure control

3. P.I.D. for precise sealing temperature control

4. Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating

5. Independent heating of upper and lower sealing jaws

6. Sealing jaw customization available in term of dimension, shape and surface

POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE PACKAGING HEAT SEALER LABORATORY HEAT SEALER

Technical data of heat seal tester

temperature	Room Temperature ~ 300℃
Deviation	±0.2℃
Dwell time	0.1 s~9999s
Sealing pressure	0.15 MPa ~ 0.7 MPa
Sealing Jaws	330mm×10mm(Sealing Surface)
Double Heating of Upper and Lower Jaws	(Customization Available)

POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE PACKAGING HEAT SEALER LABORATORY HEAT SEALER

POLYMER HEAT SEAL TESTER PLASTIC FILM HEATSEALABILITY SAMPLING MACHINE PACKAGING HEAT SEALER LABORATORY HEAT SEALER Images
