TAPPI T830 Rub Tester

Name: TAPPI T830 Rub Tester
Brand: Cell Instruments
Price: 1 USD

Place of Origin : China

Brand Name : Cell Instruments

Certification : CE

Model Number : RT-01

MOQ : 1 SET

Packaging Details : Plywood Carton

Power : Electronic

Usage : Abrasion Tester

Payment Terms : TT, LC

Price : Get An Offer

Delivery Time : 3~5 days

Supply Ability : At Stock

Contact Now

TAPPI T830 Rub Tester is designed to evaluate the scuffing or rubbing resistance of printed or coated surface of paper, paperboard, film, laminates, substrates, etc.

TAPPI T830 Rub Tester is a motor-driven device for moving a weighted test specimen over the printed or unprinted sample through an arc of 57mm for a preset number of strokes.

It conforms to TAPPI T830 and ASTM D5264 Standard Practice for Abrasion Resistance of Printed Materials.

TAPPI T830 Rub Tester

Features

1. PLC technology and human-machine operation

2. Five test modes of dry rub, wet rub, wet bleed or transfer, wet smear and functional rub

3. Test speed random setting

4. Dual stations arc movement structure

5. Buzzer reminding after test is finished

Technical Data

Rub Pressure 8.9 N(2lb); 17.8N(4lb)

Rub Speed random set between 20~120 cpm

Number of Specimens 1 ~ 2

Power Supply AC 220V 50Hz

Instrument Dimension 390 mm (L) x 480 mm (W) x 220 mm (H)

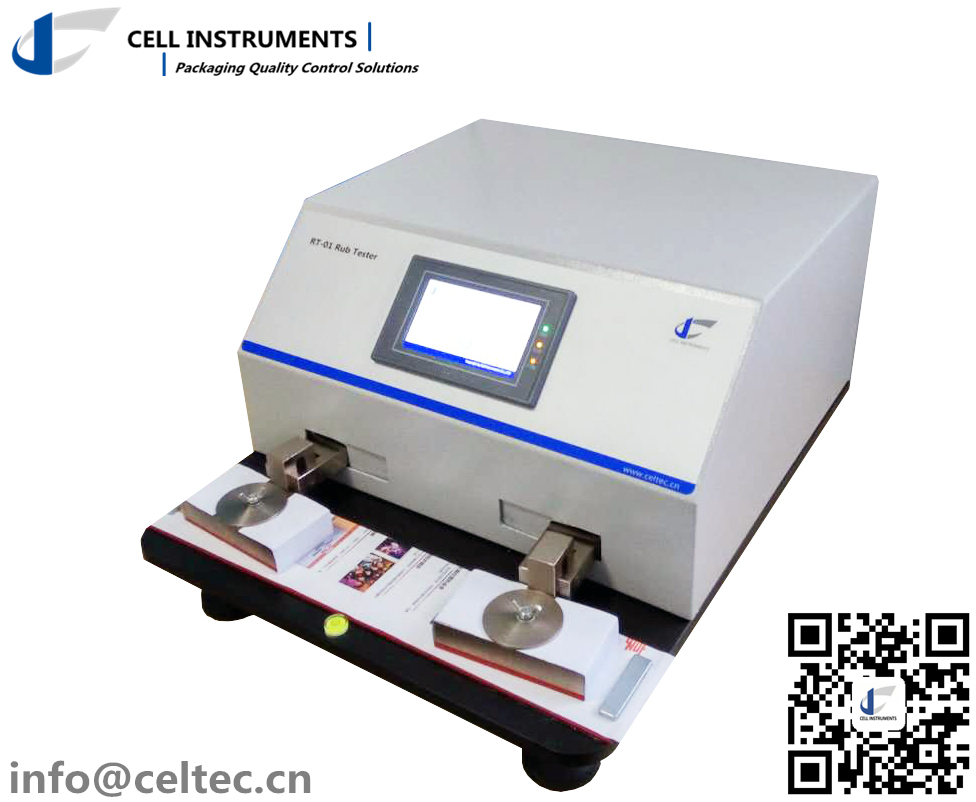

TAPPI T830 Rub Tester

TAPPI T830 Rub Tester Images
