Packages Leakage Testing Machine

Packages Leakage Testing Machine is designed for the examination of airproof property of packages, containers, bags, pipes. Leak tester is widely used in food, beverage, pharmaceutical, daily chemical, electrical and electronic industries, etc. Leak Tester complies with ASTM D3078 and GB/T 15171 standards.

Packages Leakage Testing Machine is composed of the mainframe and the vacuum chamber. A test sample is placed into a vacuum chamber with water and the air above water level is evacuated by a venturi vacuum ejector. A great pressure difference is created inside and outside the sample and any slight leakage can be observed and identified when the sample is inflated.

Packages Leakage Testing Machine Features

1. Leak test process all automatic

2. Touching screen operation

3. Digital vacuum degree and test time input

4. Parameters and test data automatic saving

5. Automatic vacuum maintenance and air back-flushing

6. Extra-thick Perspex

7. Different chamber sizes available

8. No vacuum pump required

9. Easy operation and maintenance

Packages Leakage Testing Machine Technical Specification

Vacuum: 0~-90KPa/0~-13PSI

Vacuum chamber size: Φ270 mm x 210 mm (H) ( Customization available)

Gas source: Compressed air

Gas Pressure: 0.7MPa/101.5PSI

Packages Leakage Testing Machine Standards

ASTM D3078 , GB/T 15171

leak

seal test

package

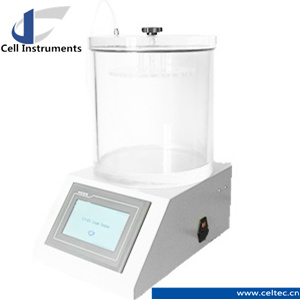

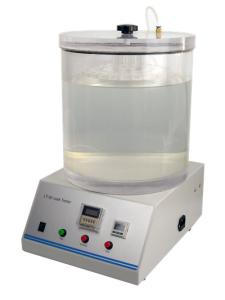

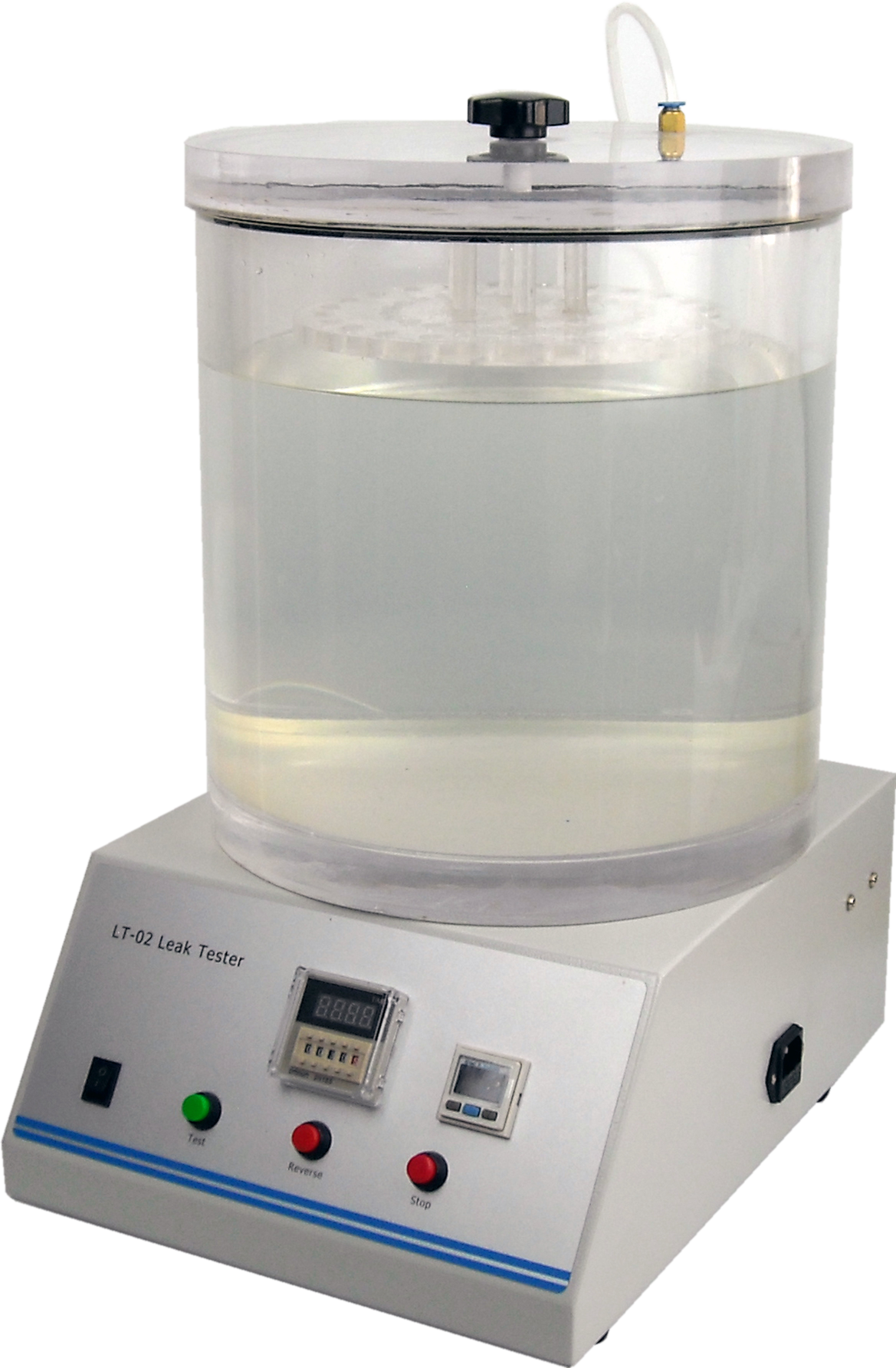

Packages Leakage Testing Machine Images
