ADHESION WRAP STRETCH FILM PEELING CLING FORCE TESTER ASTM D5458

Cell Instruments Co., Ltd.
Contact Now

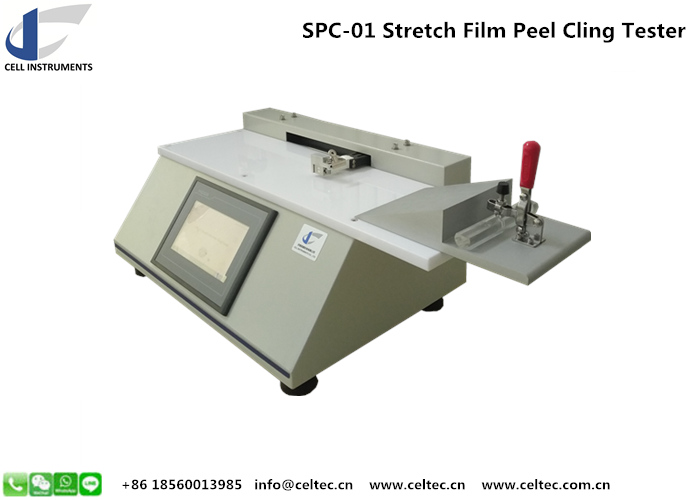

ADHESION WRAP STRETCH FILM PEELING CLING FORCE TESTER ASTM D5458

Brand Name : Cell Instruments

Model Number : SPC-01

Place of Origin : China

MOQ : 1 SET

Payment Terms : TT, LC

Packaging Details : Plywood Carton

Sample : stretch film

standards : ASTM D5458

Test speed : 125mm/min

Brand : Cell Instruments

Certification : CE

Price : Get An Offer

Delivery Time : 3~5 days

Supply Ability : At Stock

Contact Now

PVC AND PE WRAPPING STRETCH FILM PEELING CLING FORCE TESTER measures cling force between two layers of film and help to determine the property of stretch wrap material ability to adhere to it.

ADHESION WRAP STRETCH FILM PEELING CLING FORCE TESTER ASTM D5458
PVC AND PE WRAPPING STRETCH FILM PEELING CLING FORCE TESTER complies with ASTM D 5458, BB/T 0024.

Technical features

  1. 7 inch TFT touch screen operation (human machine interface)
  2. PLC control unit inside for stable performance
  3. Precision ball screw for accurate speed & displacement.
  4. Test speed is adjustable.
  5. Direct connection of loadcell with sample eliminates the interference caused by the friction and gravity of pulley and string, which are commonly used in traditional method.
  6. Limiting device and automatic returning.
  7. Real time display of test curve, peak value recording.
  8. Supportive line of elongation rates, 50%, 100% and 200%.
  9. Microprinter
  10. Coefficient of friction function can be added (Optional)

PVC AND PE WRAPPING STRETCH FILM PEELING CLING FORCE TESTER​ Parameters

Test Range 5N
Speed Range 125mm/min
Power AC 110~220V

ADHESION WRAP STRETCH FILM PEELING CLING FORCE TESTER ASTM D5458

SPC-01 Stretch Film Peel Cling Tester.pdf
