Iso 535 Cobb Absorption Tester 10kg Metal Roller Blotting Paper Cobb Tester

Name: Iso 535 Cobb Absorption Tester 10kg Metal Roller Blotting Paper Cobb Tester
Brand: Cell Instruments
Price: 1 USD

China Iso 535 Cobb Absorption Tester 10kg Metal Roller Blotting Paper Cobb Tester wholesale

Place of Origin : China

Brand Name : Cell Instruments

Model Number : COBB

MOQ : 1 SET

Price : Get An Offer

Packaging Details : Plywood Carton

Delivery Time : 3~5 days

Certification : CE

Payment Terms : TT, LC

Usage : Paper Testing Instrument

Warranty : 1 Year

Application : paper and boards

Supply Ability : At Stock

Contact Now

ISO 535 COBB absorption tester is for the measurement of surface water absorption of paper and paper board. Loose paper, e.g. newsprint, unsized paper, e.g. blotter and other high absorbability paper is not for this tester.

ISO 535 COBB Absorption Tester Principle

The Cobb value of surface water absorption of paper and paperboard.:

The calculated mass of water absorbed in a specified time by a unit area of paper or board under specified pressure and temperature conditions. It is expressed in g/㎡.

C=(G2-G1)×100.

C-water absorptiveness

G2-wet mass, in grams, of the test piece

G1-dry mass, in grams, of the test piece

When Cobb value is less than 200～250 g/㎡ for single layer, more layers can used.

Iso 535 Cobb Absorption Tester 10kg Metal Roller Blotting Paper Cobb Tester

ISO 535 COBB Absorption Tester Technical Data

Metal roller sectional area	100±0.2㎝2
Metal roller diameter	112.8±0.2mm
Roll height	50mm
Blotting paper:	200～250g/㎡
Absorption speed:	75mm/10min
Smooth metal roller:	length 200±0.5mm,mass10±0.5kg.
Water volume:	100mm±5ml.

Iso 535 Cobb Absorption Tester 10kg Metal Roller Blotting Paper Cobb Tester

ISO 535 COBB Absorption Tester Standard

ISO 535,GB/T 1540,QB/T 1668

Configuration

mainframe,metal roller,Cobb absorption sampler

Iso 535 Cobb Absorption Tester 10kg Metal Roller Blotting Paper Cobb Tester

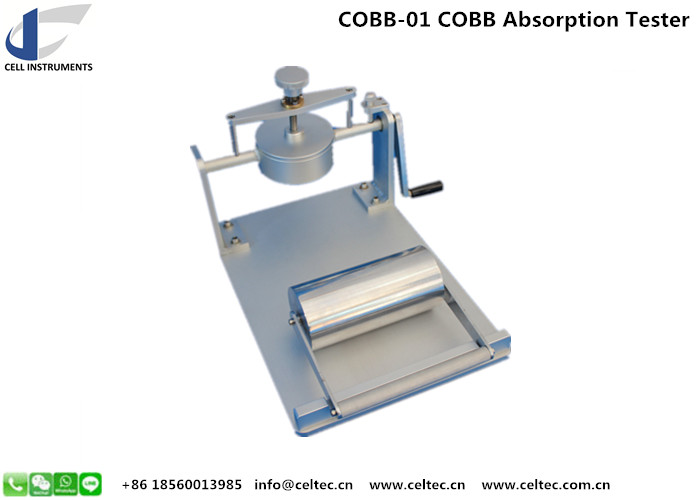

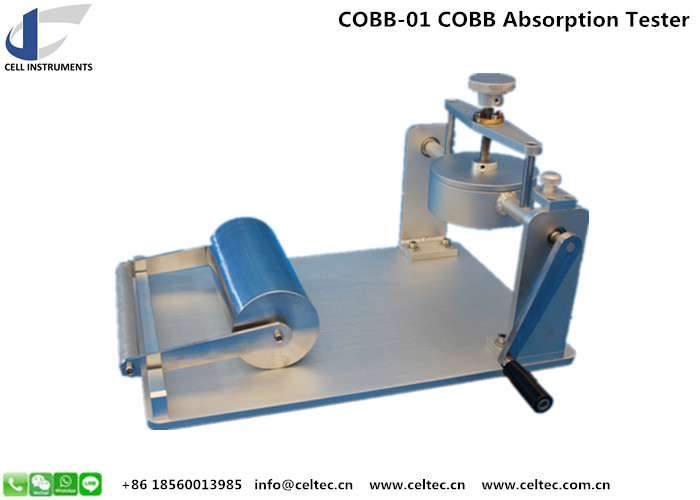

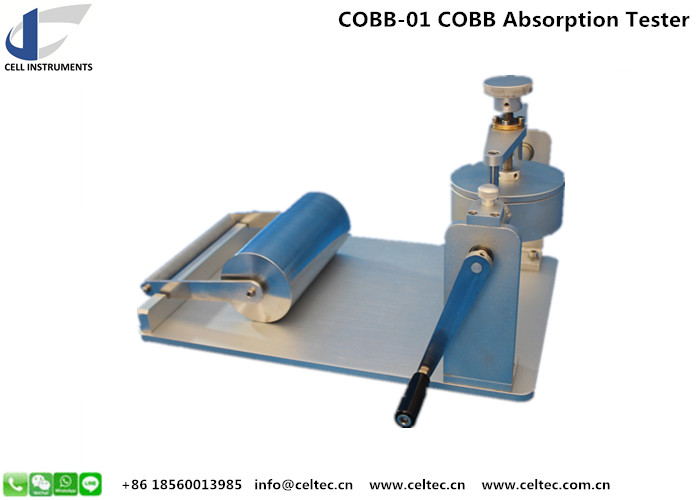

Iso 535 Cobb Absorption Tester 10kg Metal Roller Blotting Paper Cobb Tester Images
