Free falling dart impact tester Dart weight drop impact tester

Cell Instruments Co., Ltd.
Contact Now

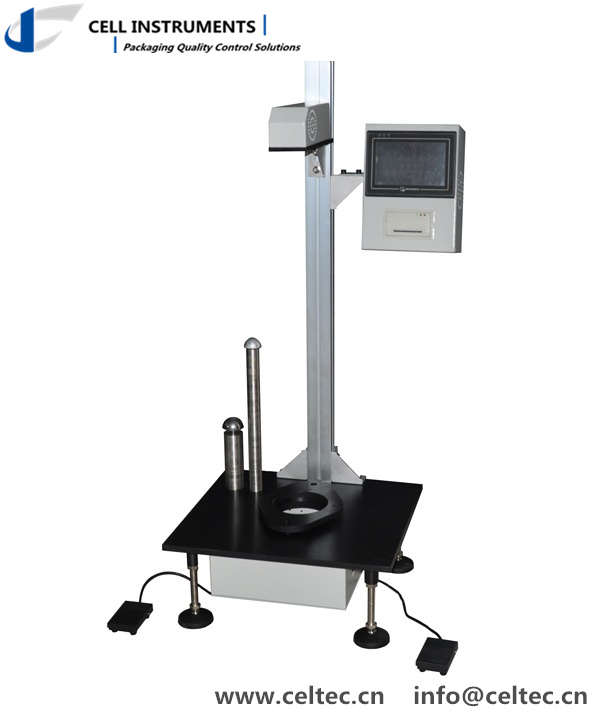

Free falling dart impact tester Dart weight drop impact tester

Place of Origin : China

Brand Name : Cell Instruments

Certification : CE

Model Number : FDT-01

MOQ : 1 SET

Packaging Details : Plywood Carton

Delivery Time : 3~5 days

Power : Electronic

Usage : Impact Testing Machine

Payment Terms : TT, LC

Price : Get An Offer

Supply Ability : At Stock

Contact Now

Free falling dart impact tester Dart weight drop impact tester determinates the energy that causes plastic film to fail under specified conditions of impact of a free-falling dart.

Free falling dart impact tester Dart weight drop impact tester features

  1. PLC control and touch screen operation
  2. Test Method A and B selectable
  3. Test results multi-units display
  4. Electromagnetic dart release mechanism
  5. Sample pneumatic clamping
  6. Manual and foot switch
  7. Standard complied hemispherical heads
  8. Built-in observation light for sample status easy judgment
  9. Micro-printer for data export
  10. Professional software(optional)

Free falling dart impact tester Dart weight drop impact tester

Free falling dart impact tester Dart weight drop impact tester Technical Data

Test Method Method A or Method B(optional)

Test Range Method A: 50~2000g Method B: 300~2000g

Dart Diameter Method A: 38±1mm Method B: 50±1mm

Impact Height 660mm/1500mm

Accuracy 0.1g (0.1J)

Specimen Clamp Pneumatic Clamp

Gas Supply 0.6 MPa

Gas Port Size Φ8 mm PU Tubing

Specimen Size > 150 mm x 150 mm

Power Supply AC 220V 50Hz

Dimension Method A: 500 mm (L) x 450 mm (W) x 1200 mm (H)

Method B: 500 mm (L) x 450 mm (W) x 2200 mm (H)

Standards

ASTM D1709 ISO 7765


China Free falling dart impact tester Dart weight drop impact tester wholesale

Free falling dart impact tester Dart weight drop impact tester Images
